Description

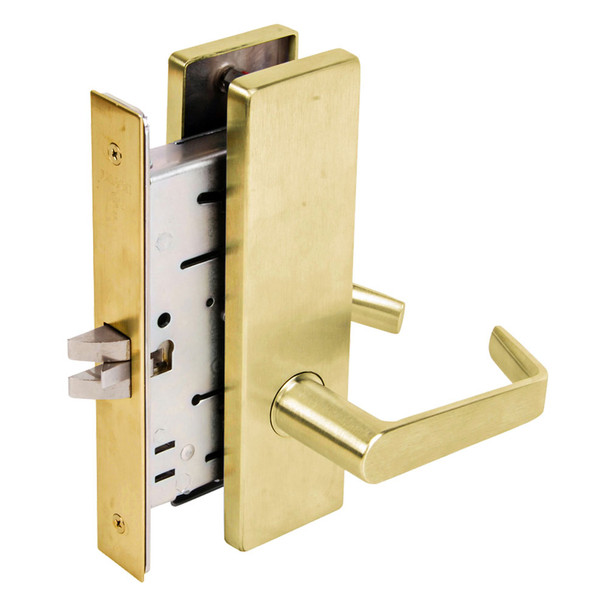

The Falcon MA101 DN 606 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Built for durability and security, it withstands constant use without fail, featuring a two-piece stainless steel latch and a 1-inch throw dead bolt with saw-resistant rollers. The interchangeable core design enables quick re-keying and works with SFIC products from other manufacturers.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A ratings. Available in 12 or 24 VDC electrified functions, it comes furnished with two nickel silver keys. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, handing, and specifications. Contact sales@edlocks.com or 1-877-207-6067 for detailed compatibility and installation support.
Specifications
- Brand: Falcon
- Model: MA101 DN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Finishes: Brass or stainless steel options
- Electrified: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard; left hand optional, reversible in field
