Description

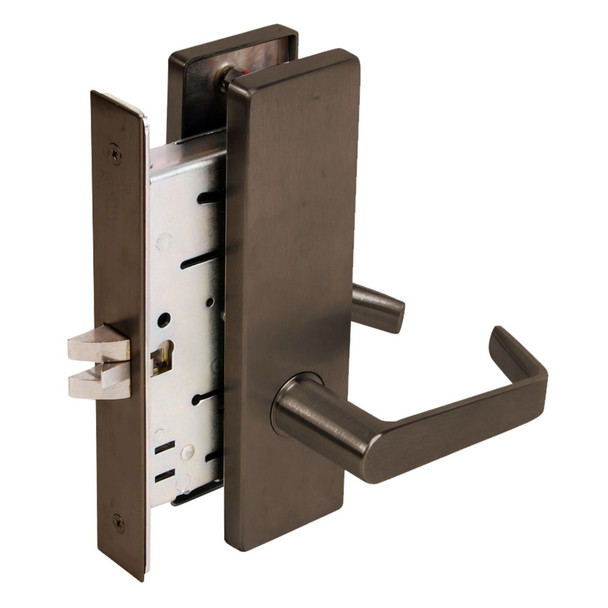

The Falcon MA101 DN 613 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw deadbolt with saw-resistant rollers. It's engineered to handle constant daily use without fail.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for quick re-keying. The MA101 includes cold-formed steel construction with zinc dichromate plating and comes with two nickel silver keys standard. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Latch bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel roller, saw-resistant
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
