Description

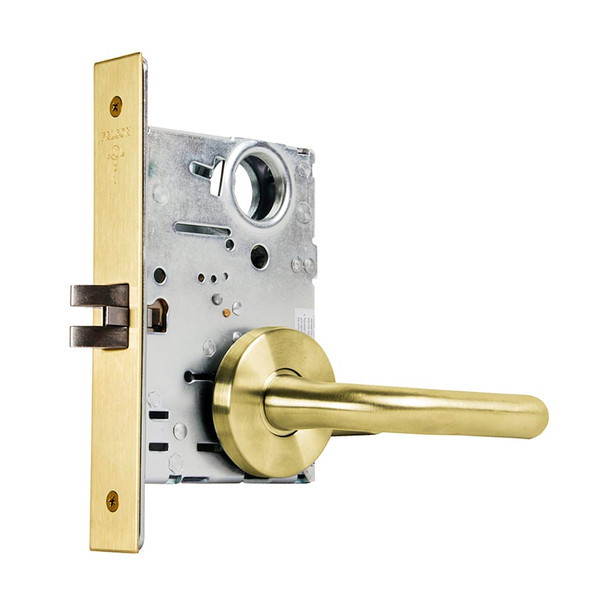

The Falcon MA101 SG 606 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It features an interchangeable core (SFIC compatible), mechanical anti-friction latch, and a 1-inch throw deadbolt with saw-resistant rollers, making it ideal for high-traffic applications requiring reliable security and durability.
This lock accommodates doors 1-3/8 inches to 2-1/2 inches thick with a 2-3/4 inch backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. It's reversible in the field for flexible installation. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G standard (standard cylinder), A standard (I/C cylinder)
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
