Description

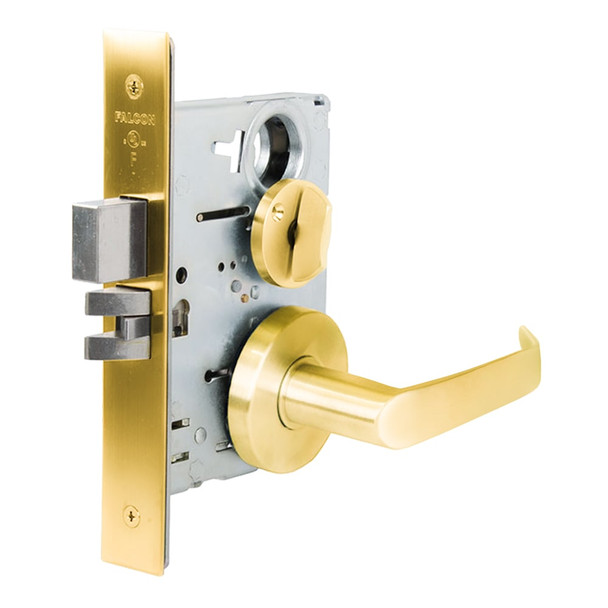

The Falcon MA301 mortise lock is a high-performance, durable choice for commercial offices, hospitals, and educational facilities. Built on Falcon's reputation for reliability, this Series 1000 lock features a mechanical anti-friction latch and heavy-duty dead bolt with saw-resistant rollers, engineered to withstand constant use without compromising security or function.
The MA301 accepts SFIC interchangeable cores for quick re-keying and is compatible with other manufacturers' cores. It accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, finishes, and electrified variants; contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA301 DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin I/C available
- Keyways: G keyway standard (standard cylinder), A keyway standard (I/C cylinder)
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13 Series 1000
- UL: 3 hour A label
