Description

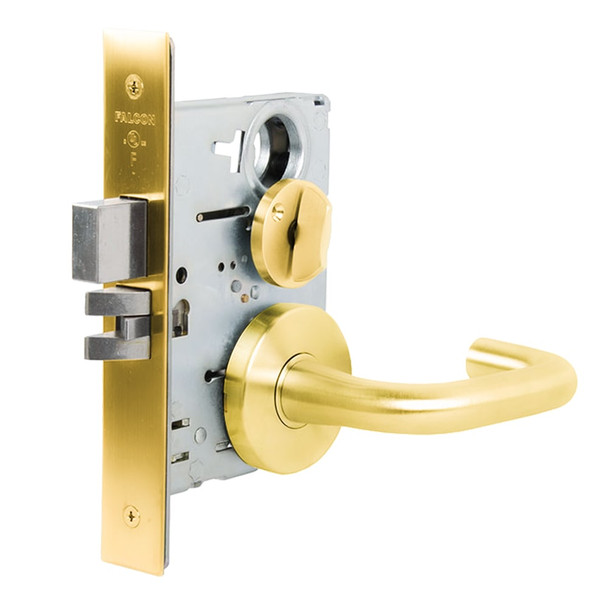

The Falcon MA301 SG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and educational environments. This durable SFIC interchangeable core lock combines security with affordability, featuring a two-piece stainless steel latch bolt, 1-inch deadbolt with saw-resistant rollers, and cold-formed steel case rated for constant use without fail.
Accommodates door thickness 1-3/8" to 2-1/2" with 2-3/4" backset; reversible handing in the field. Compatible with standard and optional SFIC cylinders (5, 6, or 7-pin). Meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and electrified options.
Specifications
- Brand: Falcon
- Model: MA301 SG 605
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G (standard), A (I/C), optional available
- Handing: Right hand standard, left hand optional, reversible
- Finish Options: Per Falcon Finishes Chart
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
