Description

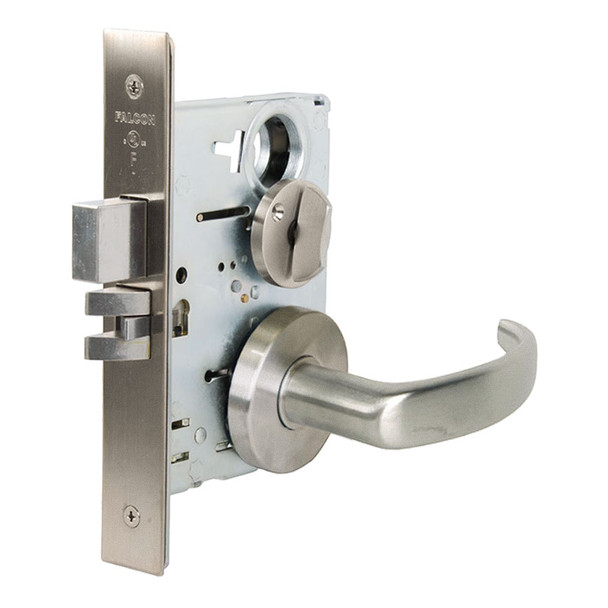

The Falcon MA301 QG mortise lock is a commercial-grade solution for offices, hospitals, and educational facilities requiring dependable security and frequent use tolerance. This ANSI/BHMA Series 1000 lock features an interchangeable core for quick re-keying, a 1-inch throw deadbolt with saw-resistant rollers, and a mechanical anti-friction latch bolt designed to handle constant traffic without failure.
The MA301 QG accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and is compatible with SFIC products from other manufacturers. As an authorized Allegion dealer, E.D. Locks provides expert specification guidance and fast shipping. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying options, handing selection, or electrified configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA301 QG
- Finish: 630 (stainless steel)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard (A keyway standard on I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible in field
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Keys Included: Two nickel silver keys standard
