Description

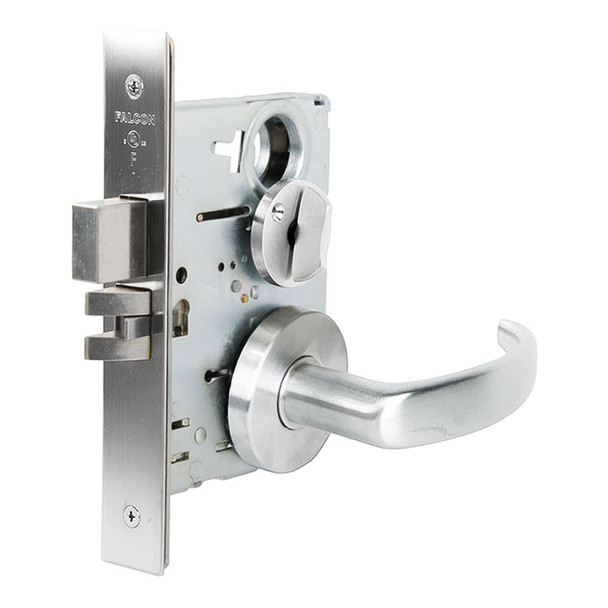

The Falcon MA301 QG mortise lock is a heavy-duty commercial solution for offices, hospitals, and educational facilities requiring reliable security and durability. This ANSI/BHMA Series 1000 certified lock features a two-piece stainless steel latch, 1-inch deadbolt throw, and saw-resistant rollers, engineered to withstand constant daily use without compromise.
The MA301 accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and accepts SFIC interchangeable cores for quick field re-keying. Available in right or left hand, reversible configurations, with optional electrified functions (12/24 VDC). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and keying support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA301 QG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin on interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- ANSI/BHMA Certification: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
- Keys Furnished: Two nickel silver keys standard
