Description

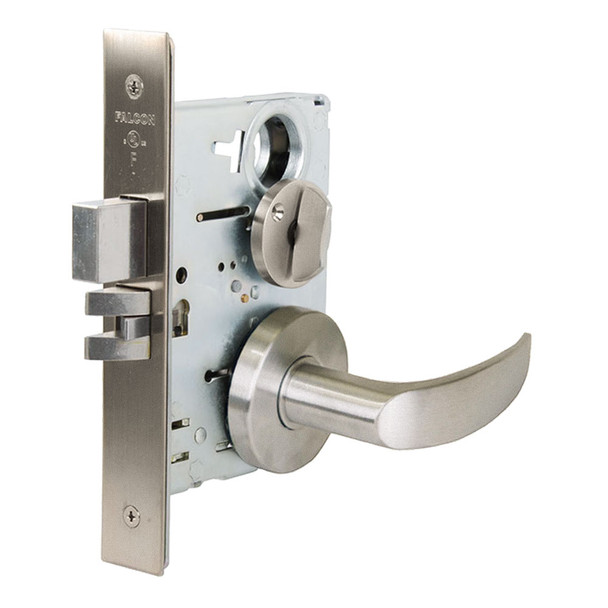

The Falcon MA311 AG 630 is a commercial-grade mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Its two-piece stainless steel latch bolt and saw-resistant roller deadbolt deliver dependable security and durability without compromise, making it ideal for institutions and businesses demanding reliable performance day after day.
This lock accepts SFIC interchangeable cores for quick re-keying and works seamlessly with compatible products from other manufacturers. Installation accommodates standard door thicknesses of 1 3/8 inches to 2 1/2 inches. As an authorized Falcon distributor, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support and to verify your exact specifications.
Specifications
- Brand: Falcon
- Model: MA311 AG 630
- Door Thickness: 1 3/8 inch to 2 1/2 inch
- Backset: 2 3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1 1/4 inch by 8 inch brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
