Description

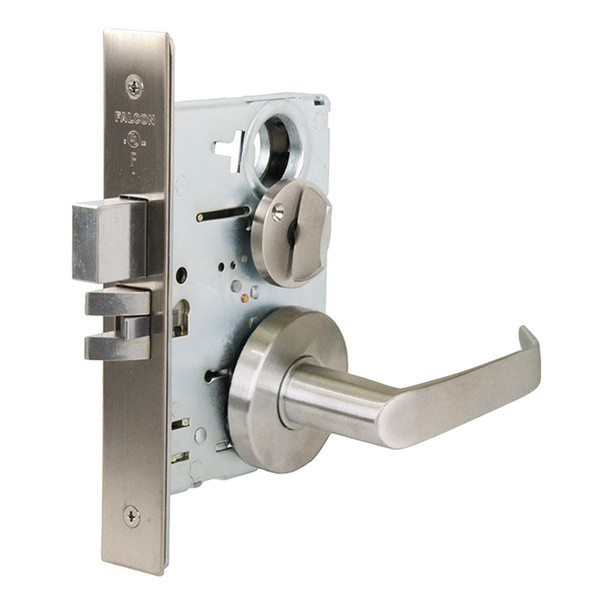

The Falcon MA311 DG 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch bolt, saw-resistant rollers, and an interchangeable core (SFIC) for quick re-keying without removing the lock from the door.
The MA311 accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and comes furnished with two nickel silver keys. Compatible with standard and optional keyways, it's available in right-hand or field-reversible left-hand handing. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specification, installation, and keying options. Contact our sales team at sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA311 DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G (standard cylinder) or A (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Handing: Right hand standard, left hand optional, field reversible
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Compliance: ANSI A115.1 frame preparation
