Description

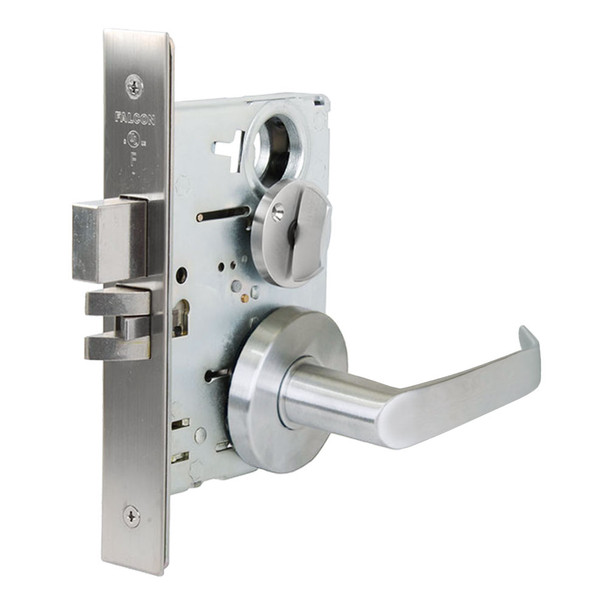

The Falcon MA311 DG 626 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. Built for constant use, this Series 1000 lock delivers dependable security with an interchangeable core that simplifies re-keying and maintains compatibility with other SFIC products, solving the costly downtime problem of traditional locks.
The MA311 fits standard door thickness 1-3/8" to 2-1/2" with a 2-3/4" backset. It features a 1" stainless steel dead bolt with saw-resistant rollers and a two-piece anti-friction latch. As an authorized Allegion dealer, E.D. Locks provides expert installation guidance and keying support. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom options.
Specifications
- Brand: Falcon
- Model: MA311 DG 626
- ANSI/BHMA Rating: Series 1000, meets ANSI/BHMA 156.13
- UL Rating: 3 hour A label
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: G (standard), A (I/C), optional keyways available
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Options: Available in 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible in field
- Furnished With: Two nickel silver keys
