Description

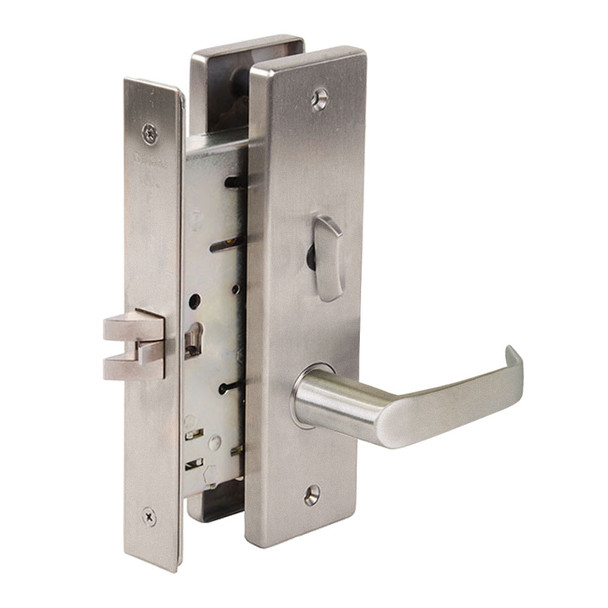

The Falcon MA321 DN 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This Series 1000 lock combines affordability with reliable security and durability, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers for dependable performance under constant use.
The MA321 accommodates door thickness from 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset and includes an interchangeable core (SFIC-compatible) for quick re-keying without removing the lock body. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, handing options, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for application support and fast shipping.
Specifications
- Brand: Falcon (Allegion)
- Model: MA321 DN 630
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available (interchangeable core: 6 or 7-pin)
- Keyways: G keyway standard (A keyway on I/C cylinder)
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel, armored
- Handing: Right hand standard, left hand reversible in field
- Finish Options: Multiple finishes available per Falcon chart
- Electrified: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
