Description

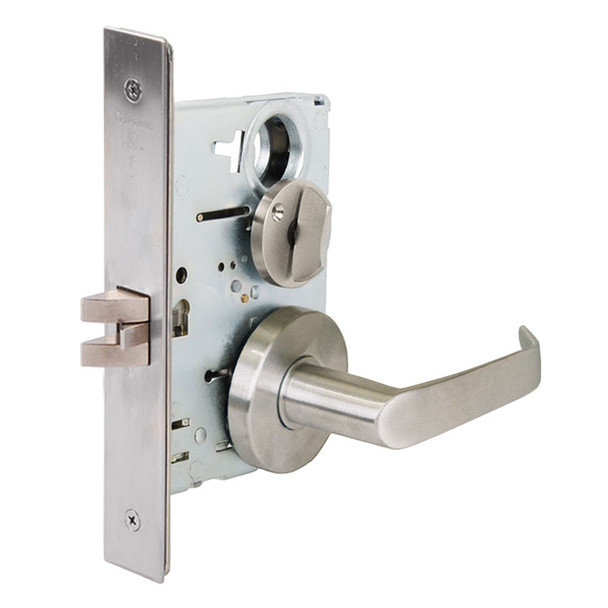

The Falcon MA321 DG 630 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. Its interchangeable core design allows quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver reliable security and durability through constant daily use.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and comes standard with a 2-3/4" backset and right-hand handing (left-hand available). As an authorized Falcon dealer, E.D. Locks provides expert assistance with compatibility questions, keying options, and electrified function configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized guidance.
Specifications
- Brand: Falcon
- Model: MA321 DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: "G" standard (standard cylinder), "A" standard (interchangeable core)
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
