Description

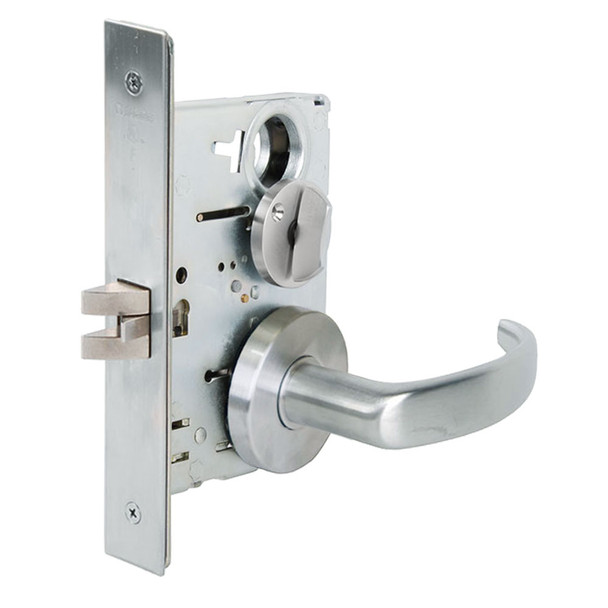

The Falcon MA321 QG mortise lock is a high-performance, affordable security solution for commercial environments including offices, hospitals, and educational facilities. Designed for constant heavy use, this ANSI/BHMA Series 1000 certified lock combines toughness with dependability, featuring a mechanical anti-friction latch bolt and a 1-inch dead bolt with saw-resistant rollers for reliable security.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features an interchangeable SFIC core for quick re-keying and cross-manufacturer compatibility. Right-hand is standard; left-hand is optional and field-reversible. For expert guidance on installation, keying, or electrified options, contact E.D. Locks & Security at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA321 QG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
