Description

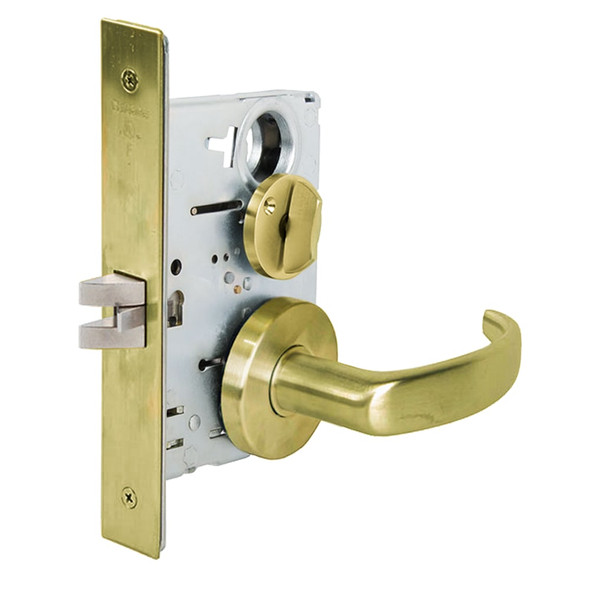

The Falcon MA321 QG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This durable, affordable lock combines a mechanical anti-friction latch with a 1-inch throw dead bolt featuring saw-resistant rollers, delivering reliable security and performance through constant daily use without fail.
Compatible with SFIC interchangeable cores for quick re-keying and retrofit applications. Accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. Right-hand handing standard; left-hand and field-reversible options available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying assistance, finish selection, and electrified function options.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Finishes: Brass or stainless steel
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
