Description

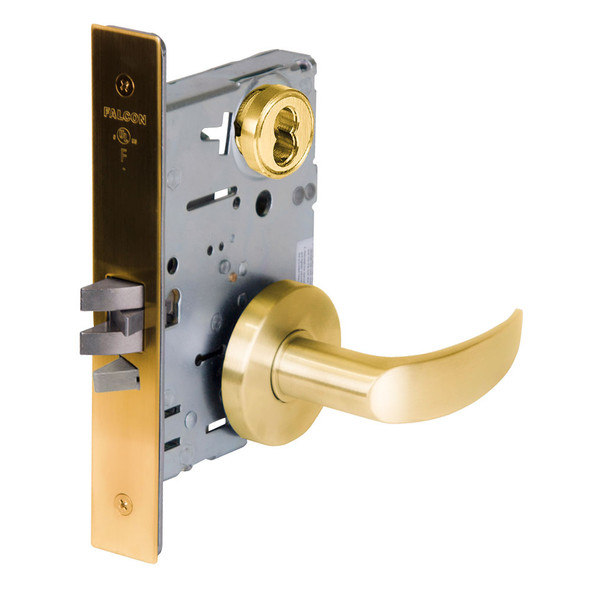

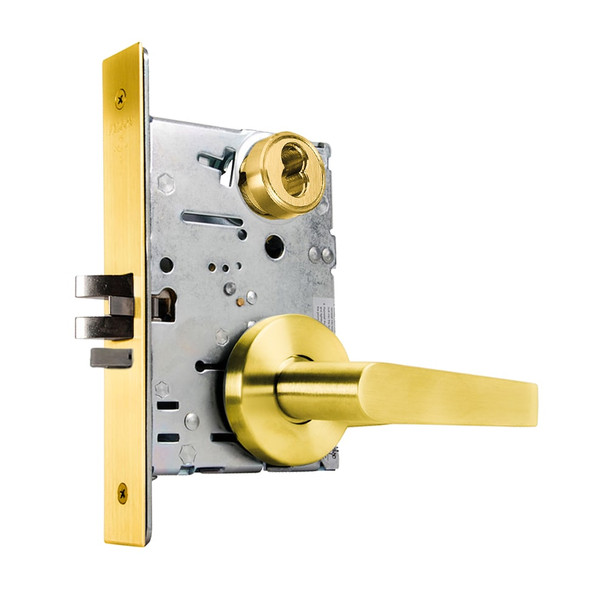

The Falcon MA381B is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It combines security with durability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core (SFIC) for convenient re-keying without removing the lock from the door.
This right-hand lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire ratings. As an authorized Falcon dealer, E.D. Locks provides expert support for compatibility questions, finish selection, and installation guidance. Contact sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA381B
- Finish: Dark Graphite (DG)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Handing: Right Hand (reversible in field)
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Cylinder: Solid brass, 6-pin interchangeable core (SFIC compatible)
- Keyway: "A" keyway standard on I/C cylinder
- Faceplates: 1-1/4" x 8", adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
