Description

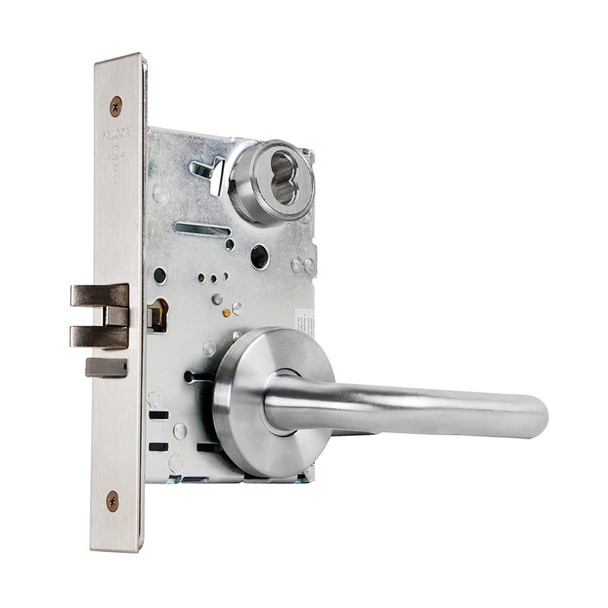

The Falcon MA381B is a high-performance mortise lock built for commercial environments including offices, hospitals, and educational facilities. Featuring a 1-inch stainless steel deadbolt with saw-resistant rollers and a 3/4-inch latch bolt, it delivers dependable security and durability for constant-use applications. The interchangeable core design enables quick re-keying without removing the lock body.
This right-hand lock accommodates door thicknesses from 1-3/8" to 2-1/2" and meets ANSI/BHMA Series 1000 and UL 3-hour A standards. Compatible with SFIC cylinders from other manufacturers, it installs with 8-32 screws and thread sealant for lasting security. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, finish selection, and electrified options.
Specifications
- Brand: Falcon
- Model: MA381B SG 626 RH
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinder: Solid brass, 6-pin standard
- Keys: Two nickel silver keys included
- Keyway: G keyway (standard cylinder) or A keyway (interchangeable core)
- ANSI/BHMA: Series 1000
- UL Rating: 3-hour A label
- Electrified: Available in 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible in field
