Description

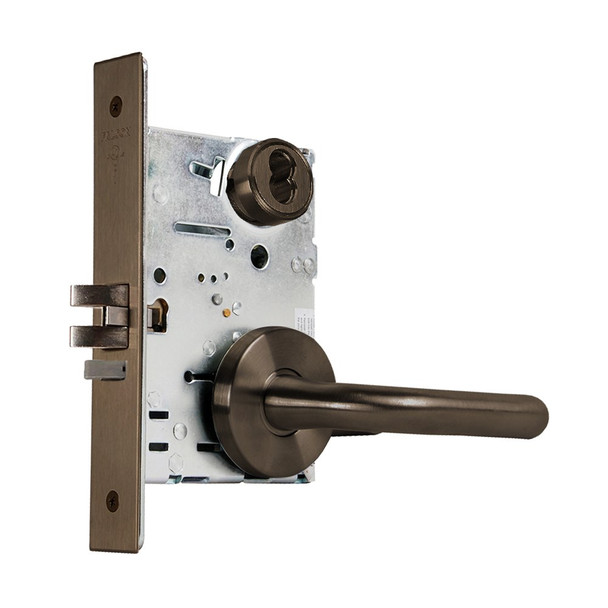

The Falcon MA381B is a commercial mortise lock engineered for offices, hospitals, and educational facilities demanding reliable security and durability. This heavy-duty lock features an interchangeable core (SFIC compatible), stainless steel latch and deadbolt with saw-resistant rollers, and bind-resistant trim that stays perfectly aligned even with constant daily use.
Fits standard 1-3/8" to 2-1/2" door thickness with 2-3/4" backset; right-hand shown, left-hand optional and field-reversible. Ships keyed to your choice with two nickel silver keys. As an authorized Falcon dealer, E.D. Locks provides expert setup guidance and access to the full Allegion product line. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, or electrified configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B SG 613 RH
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional and field-reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway standard I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys: Two nickel silver keys included
