Description

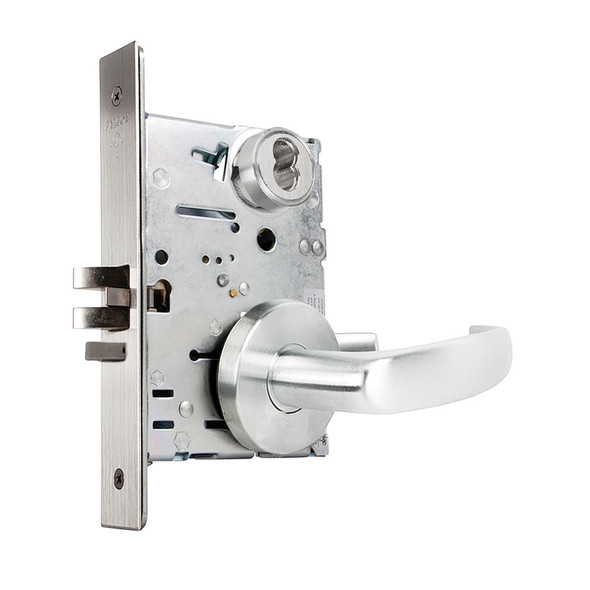

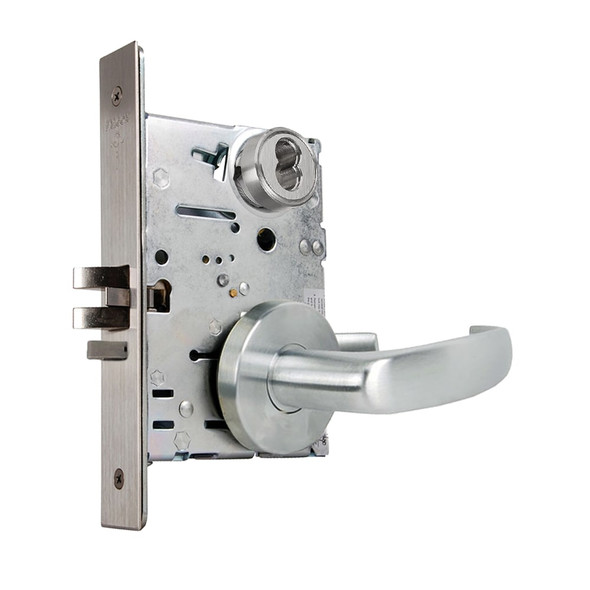

The Falcon MA411B QG 605 is a commercial mortise lock built for high-traffic office, hospital, and education environments. Its interchangeable core design enables quick re-keying without removing the lock from the door, while the two-piece stainless steel latch and 1-inch dead bolt with saw-resistant rollers provide reliable security and smooth operation under constant use.
This lock accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A-label standards. It is compatible with SFIC interchangeable cores from other manufacturers. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, installation, and finish selection backed by an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: MA411B QG 605
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keyway: G keyway standard
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible in field
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available 12 or 24 VDC
