Description

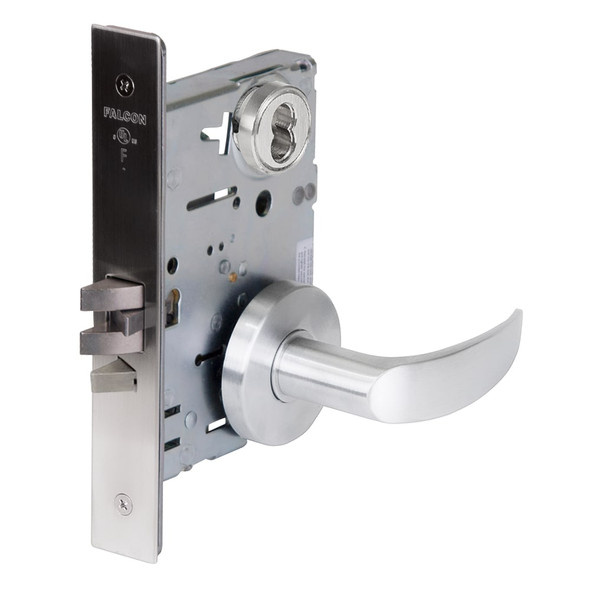

The Falcon MA411B QG 625 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its interchangeable SFIC core enables quick field re-keying without removing the lock, while the two-piece stainless steel latch and 1-inch dead bolt with saw-resistant rollers deliver dependable security for constant-use doors.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour fire ratings. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying options, and electrified functions. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification details and fast shipping.
Specifications
- Brand: Falcon
- Model: MA411B QG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyway: G standard (A standard on I/C)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard; left hand optional, reversible
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
