Description

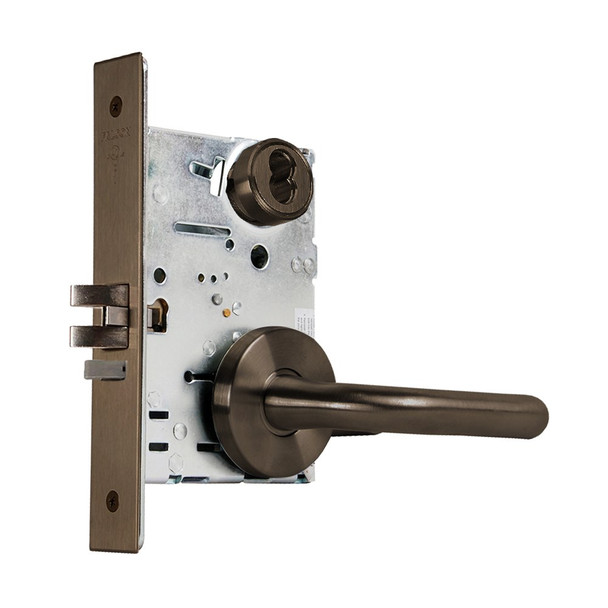

The Falcon MA441B SG 613 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built with cold-formed steel and hardened steel components, this ANSI/BHMA Series 1000 lock delivers dependable security and withstands constant daily use without compromise.
The MA441B features an interchangeable core (SFIC-compatible) for quick field re-keying and accommodates standard door thicknesses of 1-3/8" to 2-1/2". Right-hand handing is standard; left-hand and field-reversible options are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying guidance, finish selection, and electrified function options.
Specifications
- Brand: Falcon
- Model: MA441B SG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible optional
- Cylinders: Solid brass, 5, 6, or 7-pin available (standard); 6 or 7-pin (interchangeable core)
- Keyways: G keyway (standard cylinder); A keyway (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable
- Strike: Brass or stainless steel, non-handed
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
