Description

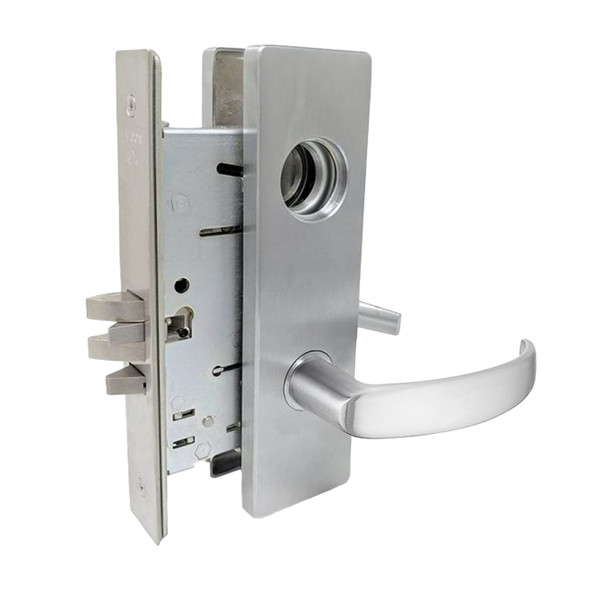

The Falcon MA441L AN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. It combines security with durability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for fast re-keying without removing the lock body.
This SFIC-compatible lock fits standard 1-3/8" to 2-1/2" door thickness and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label requirements. It's reversible in the field and available in multiple finishes and electrified options. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert help selecting the right configuration and keying for your project.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6 or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: "G" standard, "A" on I/C cylinder
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
