Description

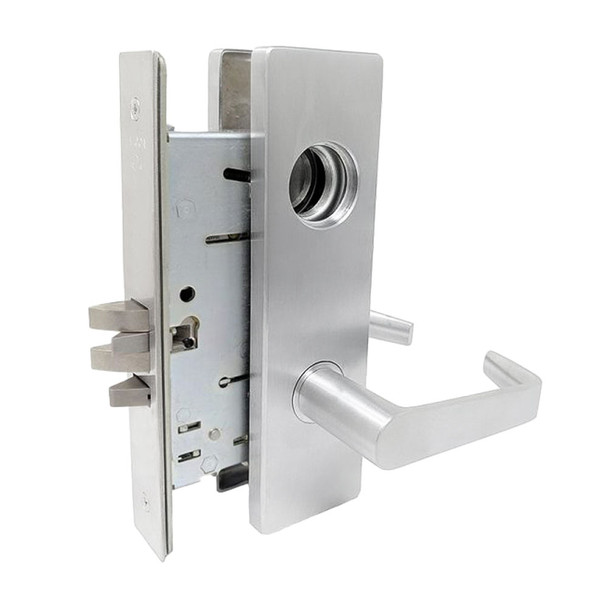

The Falcon MA441L DN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch, 1-inch dead bolt with saw-resistant rollers, and cold-formed steel construction. It solves the need for durable, low-maintenance access control that withstands constant daily use.
The MA441L accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and supports interchangeable core (SFIC) cylinders for fast re-keying without lock removal. Available in 5, 6, or 7-pin configurations and multiple finishes, it meets ANSI/BHMA Series 1000 and carries a 3-hour fire label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification confirmation and expert installation guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified Functions: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
