Description

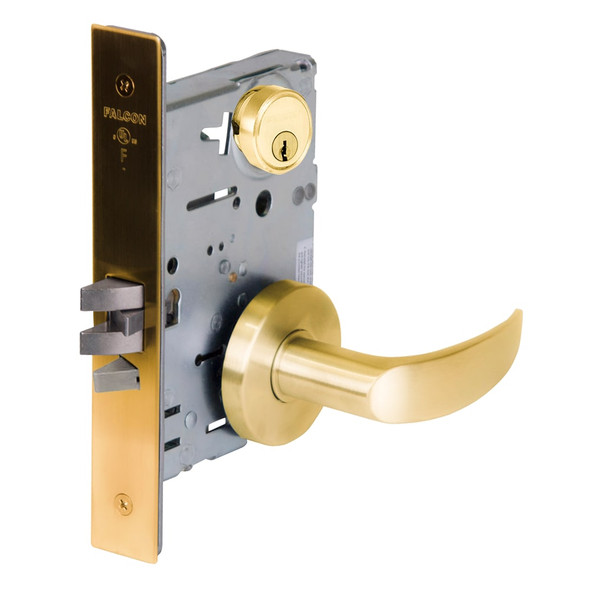

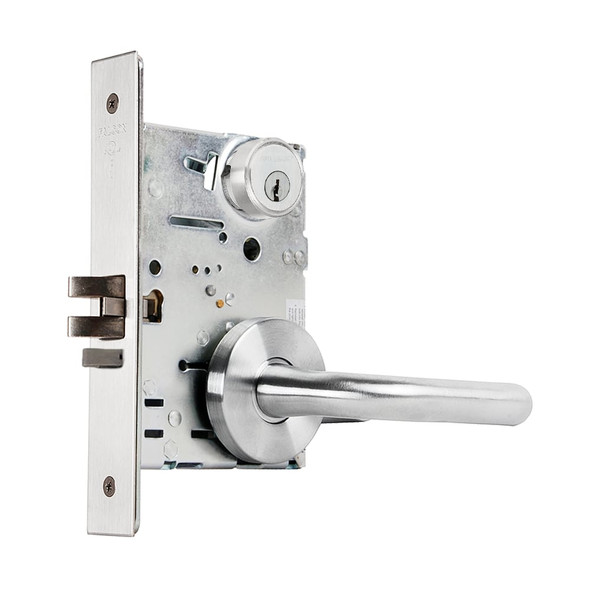

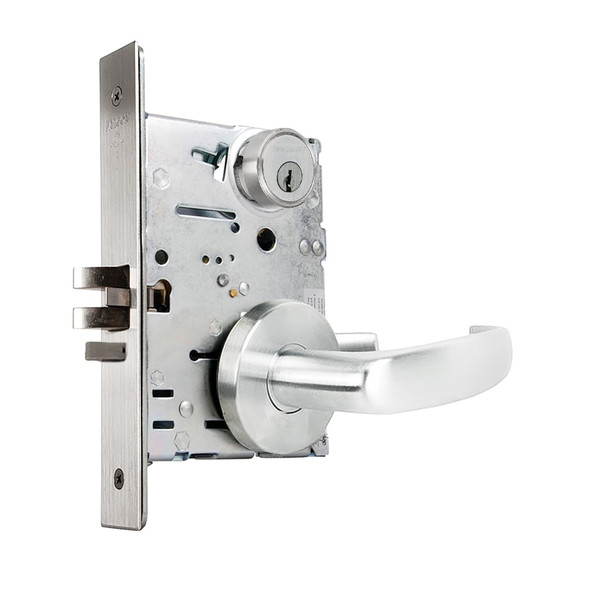

The Falcon MA441P AG 625 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. Engineered for constant use without fail, this lock combines security with durability. Its interchangeable core (SFIC-compatible) enables quick re-keying, making maintenance and upgrades straightforward for facility managers and security professionals.
Fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset. Reversible for right or left-hand swing. Available in electrified versions (12 or 24 VDC) and meets ANSI/BHMA Series 1000 and UL 3-hour A label standards. Contact E.D. Locks' authorized specialists at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Falcon
- Model: MA441P AG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Keyways: "G" standard cylinder, "A" interchangeable core
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
