Description

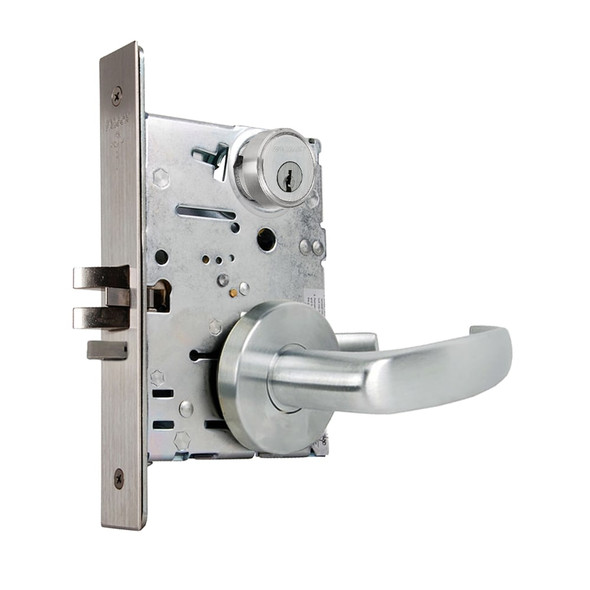

The Falcon MA441P QG 625 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. It delivers dependable security and durability through a cold-formed steel case, hardened steel components, and a mechanical anti-friction latch bolt that withstands constant use without failure.
This lock accepts SFIC interchangeable cores for quick re-keying and is field-reversible for left or right-hand installation on doors 1-3/8" to 2-1/2" thick. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and ANSI/BHMA compliance. Contact sales@edlocks.com or 1-877-207-6067 for specification details and support.
Specifications
- Brand: Falcon
- Model: MA441P QG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Keyway: G keyway (standard cylinder), A keyway (I/C cylinder)
- Cylinder Options: 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Handing: Right hand standard; left hand optional, field reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Electrified Functions: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Strike: Meets ANSI A115.1
