Description

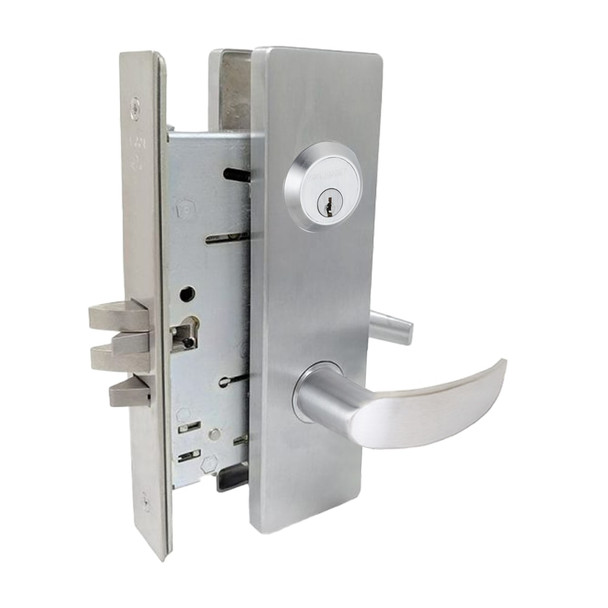

The Falcon MA441P mortise lock is a high-performance, durable option for commercial environments including offices, hospitals, and educational facilities. Built for constant use without failure, this Series 1000 lock features a mechanical anti-friction latch bolt and saw-resistant roller deadbolt, making it ideal for projects requiring dependable security and easy maintenance.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core for quick re-keying compatible with SFIC products. Available in 5, 6, or 7-pin cylinders with your choice of finishes and keying options. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for installation guidance, keying assistance, and volume pricing.
Specifications
- Brand: Falcon (Allegion)
- Model: MA441P AN 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: Optional 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Finish Options: Multiple Falcon finishes available
