Description

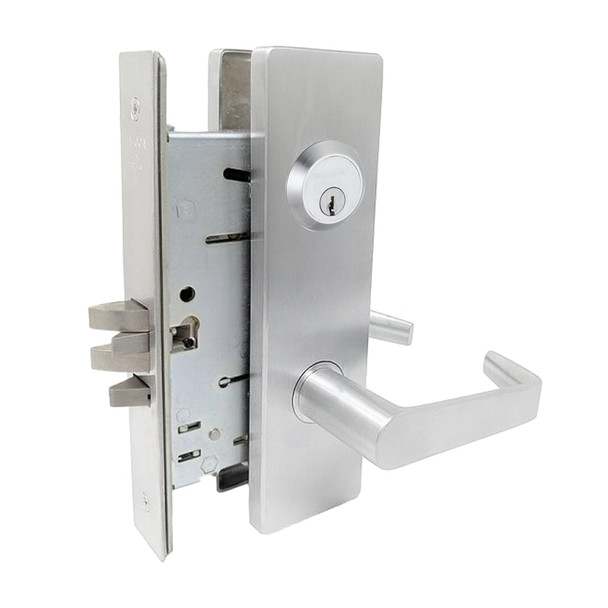

The Falcon MA441P DN 626 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This ANSI Series 1000 lock combines security with reliability, featuring a stainless steel latch bolt, anti-friction mechanism, and a 1-inch throw dead bolt with saw-resistant rollers designed to withstand constant daily use without failure.
The MA441P accommodates standard door thicknesses from 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset. Its interchangeable core (SFIC) design allows quick field re-keying and works with cores from other manufacturers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying options, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification assistance and fast shipping on orders over $450.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G keyway (standard), A keyway (I/C)
- Handing: Right hand standard, left hand optional, reversible
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
