Description

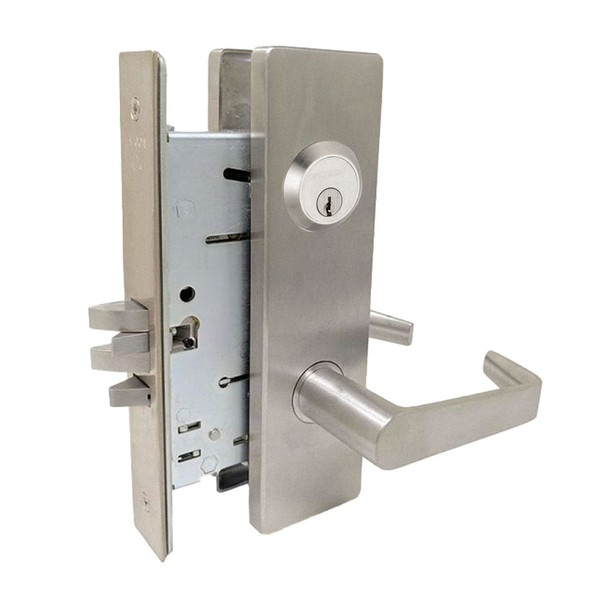

The Falcon MA441P DN 630 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, this lock combines security with durability to withstand constant daily use. Its interchangeable core (SFIC) design enables quick re-keying without removing the lock from the door.
The MA441P accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour ratings. It's reversible in the field for either hand installation. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, finishes, and electrified configurations to match your project specifications.
Specifications
- Brand: Falcon
- Model: MA441P DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder) or A keyway (IC cylinder)
- Handing: Right hand standard, left hand reversible
- ANSI/BHMA Rating: Series 1000
- UL Rating: 3-hour A label
- Electrified Options: 12 or 24 VDC available
