Description

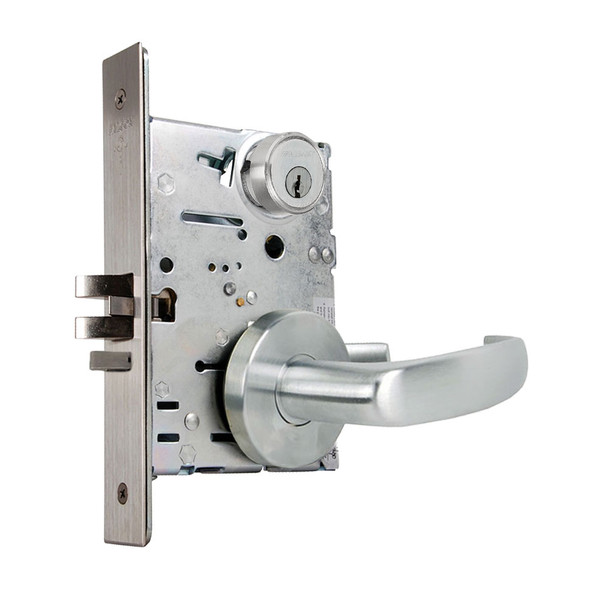

The Falcon MA441P QG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable ANSI/BHMA Series 1000 lock combines a stainless steel latch and deadbolt with saw-resistant rollers, delivering reliable security and performance under constant use without compromise.
The MA441P features an interchangeable core (SFIC-compatible) for fast re-keying, adjustable faceplates for standard door bevels, and accommodates 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified configurations, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and competitive pricing.
Specifications
- Brand: Falcon
- Model: MA441P QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard or interchangeable core
- Keys: Two nickel silver keys standard
- Keyway: "G" standard (other keyways available)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- ANSI/BHMA Rating: Series 1000
- UL Rating: 3 hour A label
- Electrified: 12 or 24 VDC available
- Handing: Right hand standard, left hand optional, reversible
