Description

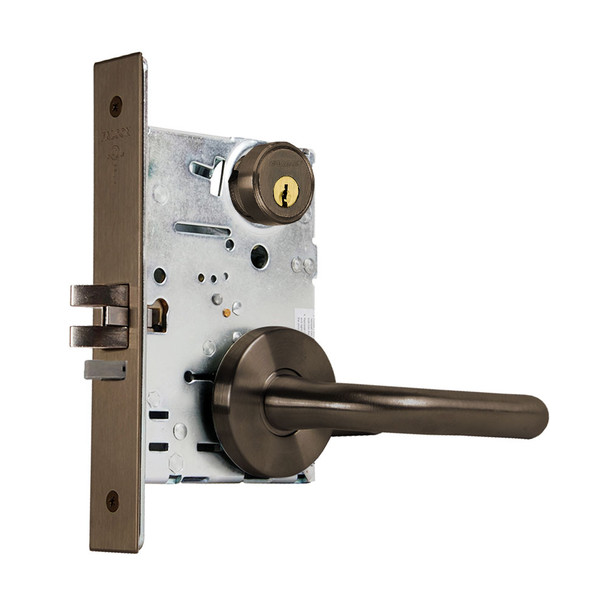

The Falcon MA441P SG mortise lock is a high-performance, affordable security solution for commercial environments including offices, hospitals, and educational facilities. Built for constant use, this durable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making it ideal for retrofit applications.
The MA441P accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. It is supplied with two nickel silver keys and reversible handing in the field. For expert guidance on keying options, finishes, and electrified configurations, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (by Allegion)
- Model: MA441P SG 613
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin on I/C core
- Keyway: G (standard cylinder); A (I/C cylinder)
- Keys Supplied: Two nickel silver keys
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Handing: Right hand standard; left hand reversible in field
- Electrified: Optional 12 or 24 VDC
- Ratings: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
