Description

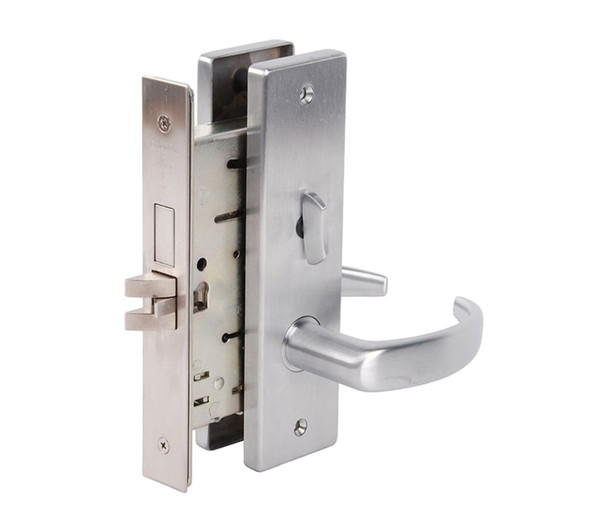

The Falcon MA451L is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a stainless steel latch bolt and 1-inch dead bolt with saw-resistant rollers. It handles constant use without fail and supports door thicknesses from 1-3/8" to 2-1/2".
The interchangeable core design enables quick re-keying and works with SFIC products from other manufacturers. Available in 5, 6, or 7-pin cylinders and reversible field handing for installation flexibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and authorized dealer support backed by Allegion's reputation.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Latch bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead bolt: 1" throw stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Includes: Two nickel silver keys
