Description

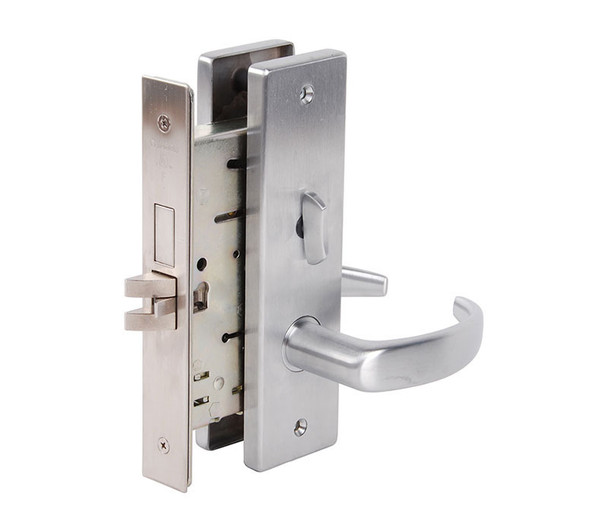

The Falcon MA451L QN 626 is a commercial mortise lock built for high-traffic office, hospital, and education environments. Its interchangeable core design enables quick field re-keying and is compatible with SFIC products from other manufacturers, making it ideal for facilities requiring flexibility and reliability without constant downtime.
This lock accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards plus UL 3-hour A rating. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA451L QN 626
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Handing: Right hand standard; left hand optional, field reversible
- Faceplate: 1-1/4" x 8", brass or stainless steel
- Finish: Satin Chrome (626)
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
