Description

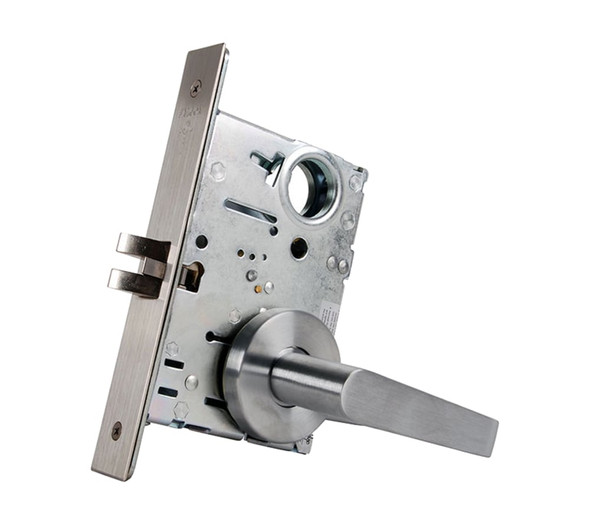

The Falcon MA521B DG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable, dependable lock combines security with affordability, built to withstand constant use. The interchangeable core design enables quick re-keying and works with SFIC products from other manufacturers.
Standard door thickness accommodation is 1-3/8" to 2-1/2" with a 2-3/4" backset. Right-hand handing is standard; left-hand is optional and field-reversible. The lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, cylinder options, and electrified configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA521B DG 605
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Standard Keyways: G (standard cylinder), A (interchangeable core)
- Keys Furnished: Two nickel silver
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
