Description

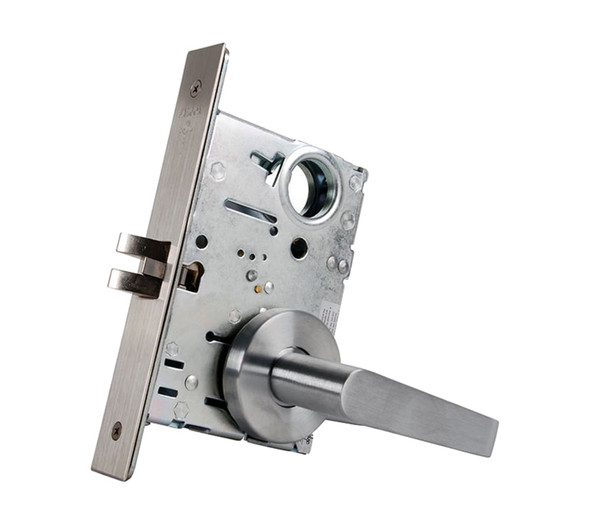

The Falcon MA521B DG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This ANSI Series 1000 lock combines security with durability, featuring a mechanical anti-friction latch bolt and a 1 inch throw dead bolt with saw-resistant rollers. Built to withstand constant use without compromise, it solves the need for reliable, low-maintenance access control in demanding environments.
This mortise lock accommodates standard door thickness of 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset and ships with reversible hand orientation and SFIC interchangeable core compatibility for easy re-keying. Backed by Allegion and UL-rated for 3-hour fire doors, it meets ANSI/BHMA 156.13 standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, and expert installation guidance.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C available
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: Series 1000, meets 156.13
- UL: 3-hour A label
- Electrified: 12 or 24 VDC available
- Handing: Right hand standard; left hand optional, reversible in field
