Description

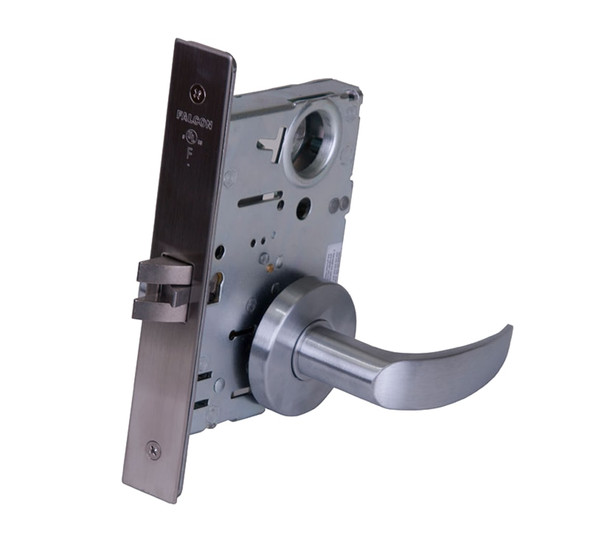

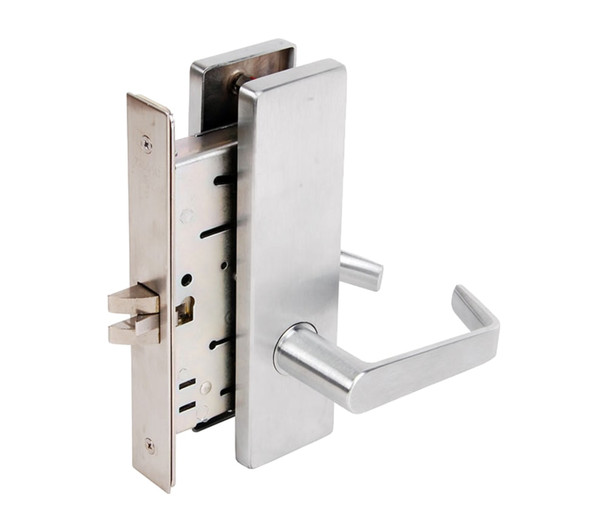

The Falcon MA521B DN 606 is a commercial mortise lock designed for offices, hospitals, and educational facilities requiring reliable security and durability. This ANSI/BHMA Series 1000 lock features an interchangeable core for quick re-keying, a 1-inch throw deadbolt with saw-resistant rollers, and a two-piece stainless steel latch bolt. Built to withstand constant use without failure, it combines affordability with heavy-duty performance.
The MA521B accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes bind-resistant trim with through-bolted inserts for proper alignment. It's compatible with SFIC products and available in 12 or 24 VDC electrified functions. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specification, installation, and keying. Contact sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Brand: Falcon
- Model: MA521B DN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: 12 or 24 VDC available
- Ratings: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label
- Includes: Two nickel silver keys
