Description

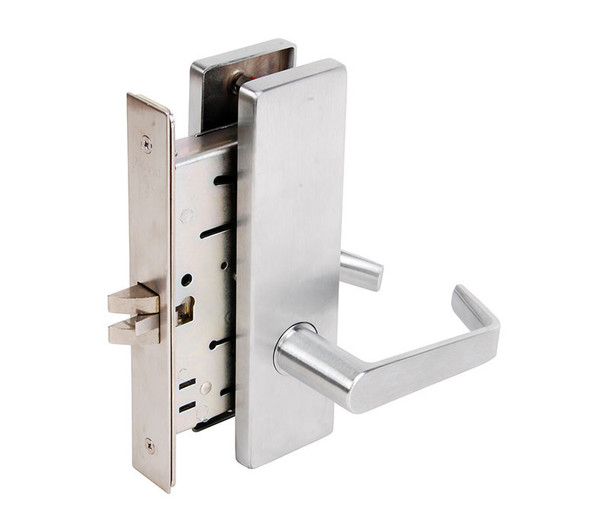

The Falcon MA521B DN 630 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This durable lock features an interchangeable core for quick re-keying, a mechanical anti-friction latch, and a saw-resistant dead bolt, making it ideal for high-traffic doors that demand reliable security without compromise.
The MA521B fits standard door thicknesses from 1-3/8" to 2-1/2" and accommodates both right- and left-hand applications. It is compatible with SFIC products and meets ANSI/BHMA 156.13 Series 1000 standards. For expert guidance on keying options, handing, finish selection, and installation support, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA521B DN 630
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core
- Standard Keyway: G (standard cylinder), A (interchangeable core)
- Keys Furnished: Two nickel silver keys
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" diameter hardened steel free-turning saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label
- Optional: Lead wrapping available
