Description

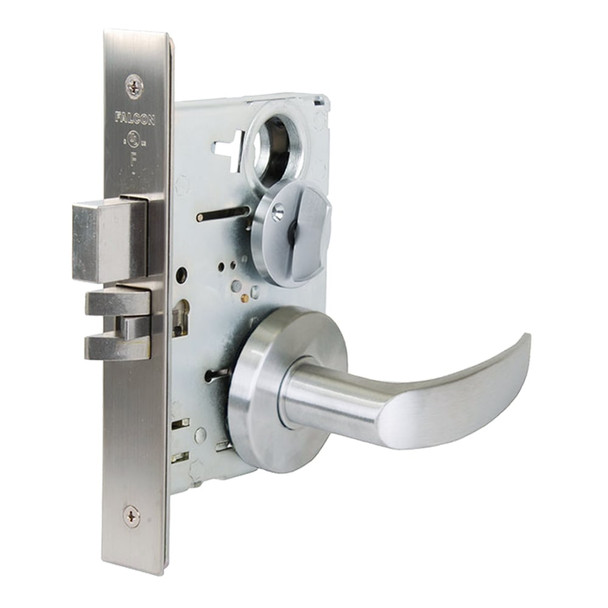

The Falcon MA Series mortise lock delivers affordable, high-performance security for commercial buildings including offices, hospitals, and educational facilities. Built for constant use without fail, this dependable lock features an interchangeable core (SFIC-compatible) for quick re-keying and easy maintenance in retrofit applications.
The MA521CP6 AG 626 fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset and includes a 1" throw dead bolt with saw-resistant rollers and a 3/4" latch bolt. It meets ANSI/BHMA 156.13 Series 1000 and carries a UL 3-hour A label. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, handing, and electrified options. Contact us at sales@edlocks.com or 1-877-207-6067 for detailed specifications and support.
Specifications
- Brand: Falcon
- Model: MA521CP6 AG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 6-pin standard
- Keyway: G keyway (standard cylinder), A keyway (IC cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3-hour A label
- Electrified: Available 12 or 24 VDC
