Description

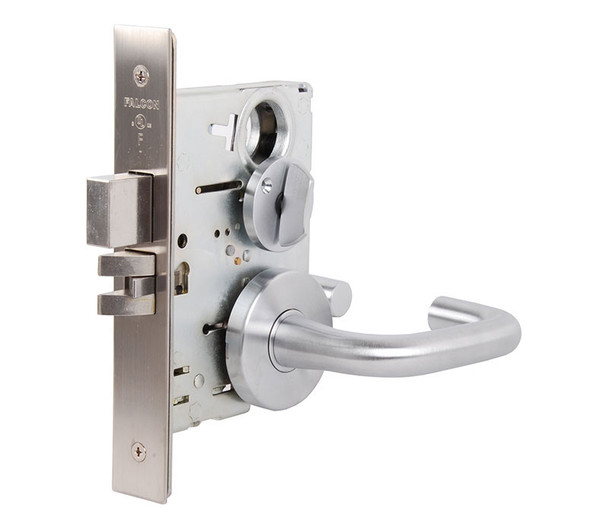

The Falcon MA Series mortise lock delivers high-performance security for commercial office, hospital, education and institutional applications. Built tough for constant use, this ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch and saw-resistant roller deadbolt, with interchangeable core capability for quick re-keying without removing the lock body.
This mortise lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. It is compatible with SFIC (Small Format Interchangeable Core) products from other manufacturers. As an authorized Falcon dealer, ED Locks provides expert specification guidance and technical support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and keying for your project.
Specifications
- Brand: Falcon (Allegion)
- Model: MA521CP6 SG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers (13/16" diameter)
- Cylinders: Solid brass, available in 5, 6 or 7-pin standard or interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (IC cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
