Description

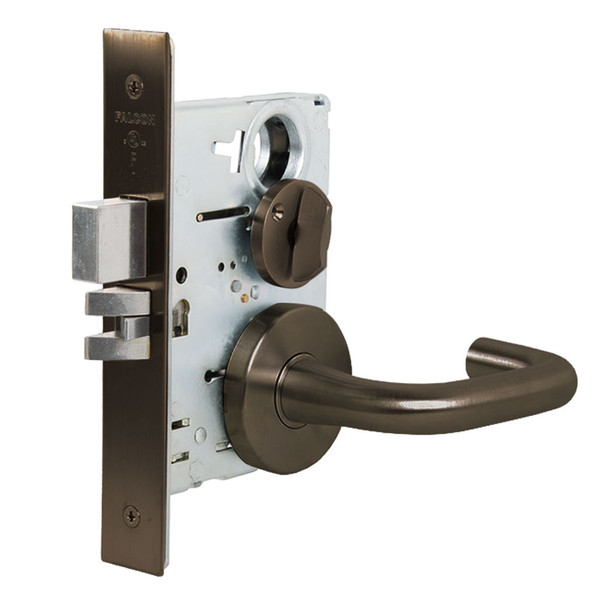

The Falcon MA541B mortise lock delivers professional-grade security for commercial offices, hospitals, educational facilities, and high-traffic buildings. Built for constant use without fail, this Series 1000 lock combines toughness with affordability, featuring a stainless steel deadbolt with saw-resistant rollers and a two-piece anti-friction latch bolt for reliable performance.
This lock accommodates door thicknesses from 1 3/8 inch to 2 1/2 inch with a 2 3/4 inch backset and includes an interchangeable core cylinder compatible with SFIC products. Right-hand handing is standard; left-hand and field-reversible options are available. Contact E.D. Locks for expert keying guidance, compatibility verification, and installation support at sales@edlocks.com or 1-877-207-6067. As an authorized Allegion dealer, we ensure you receive genuine products backed by expert service.
Specifications
- Brand: Falcon
- Model: MA541B SG 613
- Door Thickness: 1 3/8 inch to 2 1/2 inch
- Backset: 2 3/4 inch
- Case Material: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Deadbolt: 1 inch throw stainless steel with two 13/16 inch hardened steel saw-resistant rollers
- Faceplates: 1 1/4 inch x 8 inch brass or stainless steel, adjustable for door bevel
- Keyway: G (standard cylinder), A (I/C cylinder)
- Handing: Right-hand standard, left-hand optional, field-reversible
- ANSI/BHMA Rating: Series 1000 (ANSI/BHMA 156.13)
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
