Description

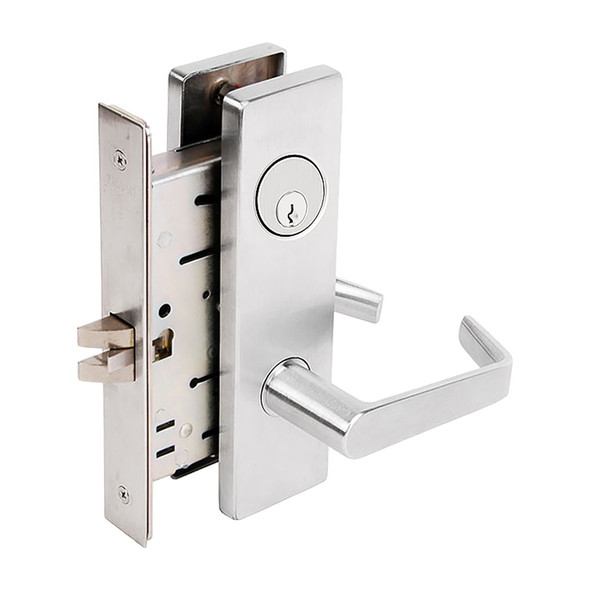

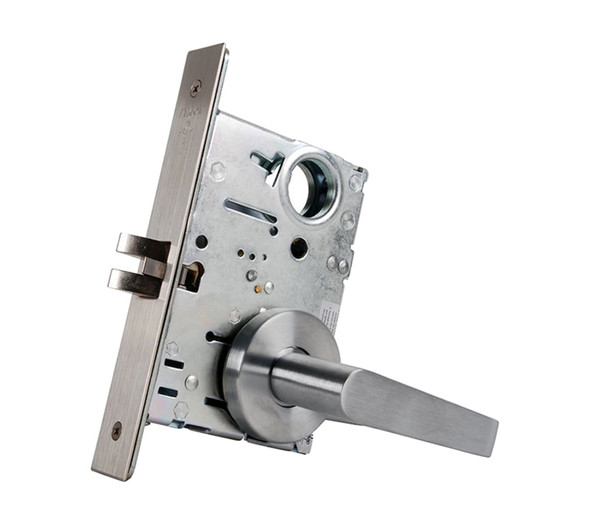

The Falcon MA521P AG 625 is a mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It delivers dependable security with an interchangeable core for quick re-keying and SFIC compatibility, making it ideal for retrofit projects and high-traffic applications requiring minimal downtime.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keyway options, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification verification and installation support.
Specifications
- Brand: Falcon
- Model: MA521P AG 625
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G keyway standard (standard cylinder), A keyway standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3 hour A label
