Description

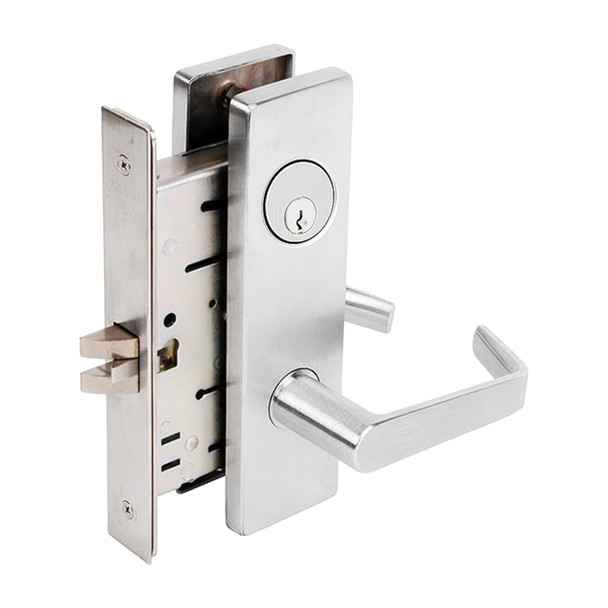

The Falcon MA521P DN 625 is a heavy-duty mortise lock designed for commercial buildings including offices, hospitals, and educational facilities. This durable lock combines security with reliable performance in high-traffic environments, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers for enhanced protection.
The MA521P accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core for quick re-keying. It meets ANSI/BHMA 156.13 Series 1000 standards and carries a 3-hour UL label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified configurations, and installation support.
Specifications
- Brand: Falcon
- Model: MA521P DN 625
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Electrified: 12 or 24 VDC available
- Standard Keyway: G (standard cylinder), A (interchangeable core)
- Finish: Satin Chrome (DN 625)
- Compliance: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
