Description

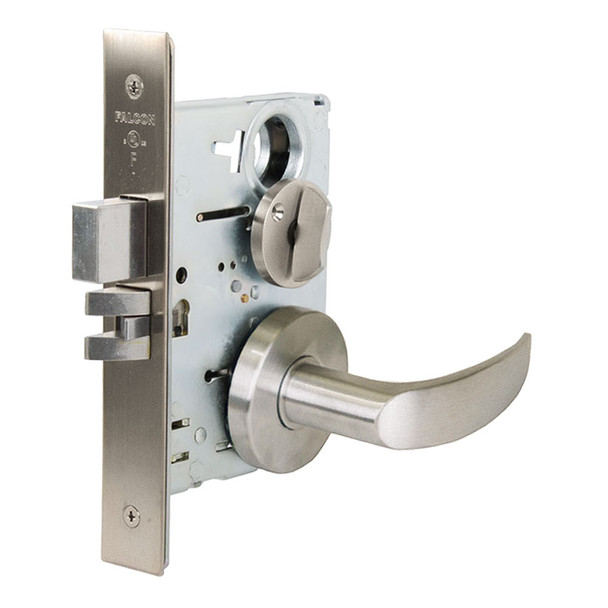

The Falcon MA521P AG 630 is a commercial mortise lock engineered for offices, hospitals, and educational facilities requiring dependable security and durability. Its interchangeable core design enables quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller deadbolt withstand heavy daily use in high-traffic environments.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and compatibility with SFIC products. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specification details and fast delivery.
Specifications
- Brand: Falcon
- Model: MA521P AG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keyways: G keyway (standard), A keyway (I/C)
- Handing: Right hand standard, left hand optional, reversible
- Faceplates: 1-1/4" x 8", brass or stainless steel
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
