Description

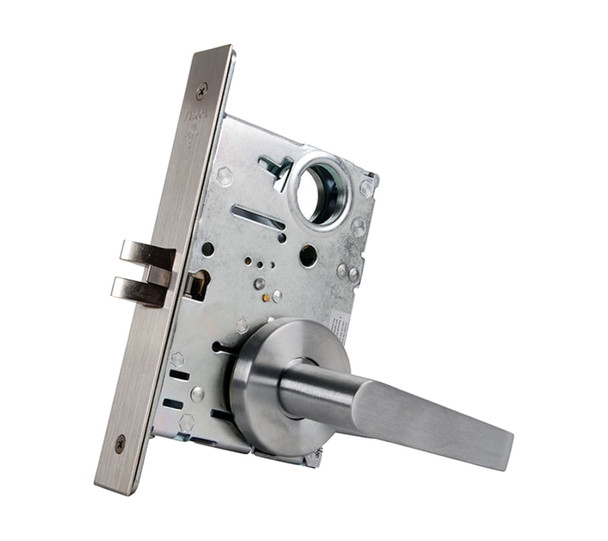

The Falcon MA521P is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic buildings requiring reliable security and durability. Built tough with cold-formed steel construction and an interchangeable core system, it handles constant use without compromise and simplifies re-keying across your facility.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and features a 1" throw deadbolt with saw-resistant rollers and a 3/4" latch bolt. It's fully compatible with SFIC interchangeable cores and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour ratings. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing, and electrified options.
Specifications
- Brand: Falcon (by Allegion)
- Model: MA521P DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt Throw: 1" with hardened steel, free-turning, saw-resistant rollers (13/16" diameter)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Cylinder: Solid brass, 6 or 7-pin (interchangeable core), includes two nickel silver keys
- Keyway: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Handing: Right-hand standard; left-hand optional, reversible in field
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: Available in 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
