Description

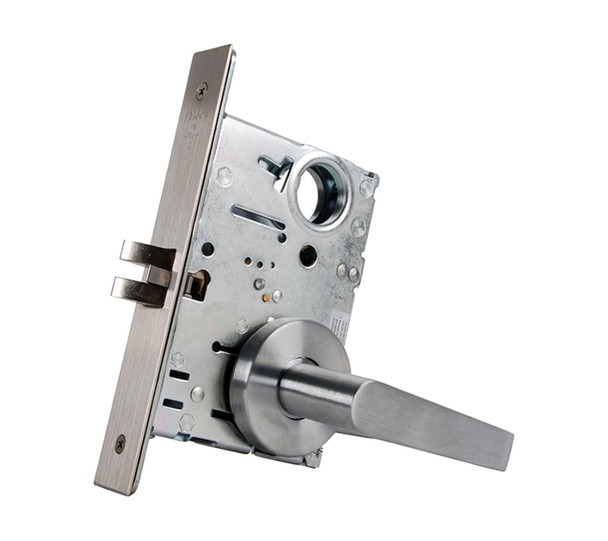

The Falcon MA521P DG 606 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. Its interchangeable core design allows quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller dead bolt deliver dependable security and durability under constant use.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible for either hand installation. As an authorized Falcon dealer, E.D. Locks provides expert support to help you select the right keying, finish, and electrified options. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized guidance.
Specifications
- Brand: Falcon
- Model: MA521P DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin options
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
