Description

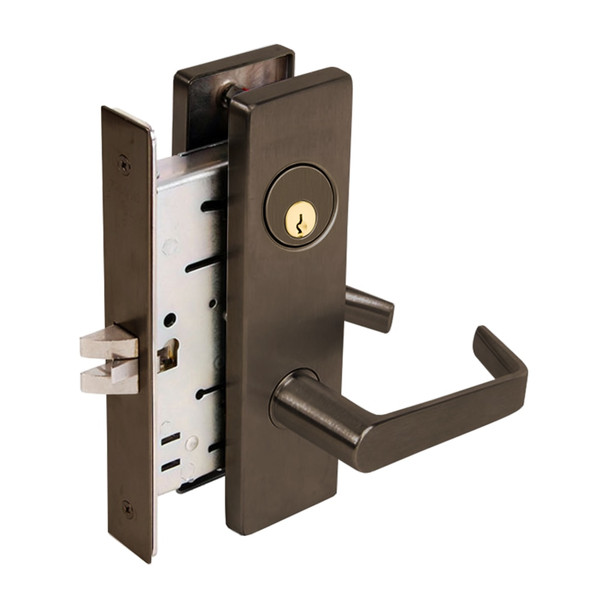

The Falcon MA521P DN 613 is a commercial-grade mortise lock engineered for offices, hospitals, educational facilities, and high-traffic buildings. This durable lock combines security with dependability, featuring a stainless steel latch bolt, saw-resistant roller deadbolt, and cold-formed steel case built to withstand constant use without compromise.
The MA521P accommodates door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core for quick re-keying and SFIC compatibility with other manufacturers' products. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. For expert guidance on handing, keying, or electrified options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA521P DN 613
- Backset: 2-3/4" only
- Door Thickness: 1-3/8" to 2-1/2"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin available (6 or 7-pin on interchangeable core)
- Keyways: G keyway standard (A keyway standard on I/C cylinder)
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, 3-hour UL A label
