Description

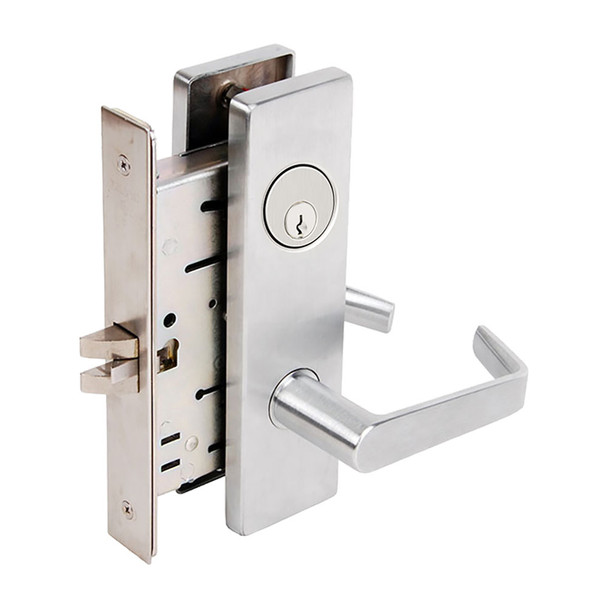

The Falcon MA521P DN 626 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, it delivers dependable security and withstands constant use. The interchangeable core (SFIC) design enables quick re-keying without removing the lock body, reducing downtime and maintenance costs.
This lock accommodates standard door thicknesses from 1 3/8" to 2 1/2" with a 2 3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. The MA521P ships with two nickel silver keys and supports 6 or 7-pin cylinders. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance tailored to your project.
Specifications
- Brand: Falcon
- Model: MA521P DN 626
- Lock Type: Mortise, Interchangeable Core (SFIC)
- Door Thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 6 or 7-pin available on I/C cylinder
- Keyway: "A" keyway standard on I/C cylinder
- Keys Furnished: Two nickel silver keys
- Faceplates: 1 1/4" x 8" adjustable for door bevel
- Available Finishes: Brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: Available in 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
