Description

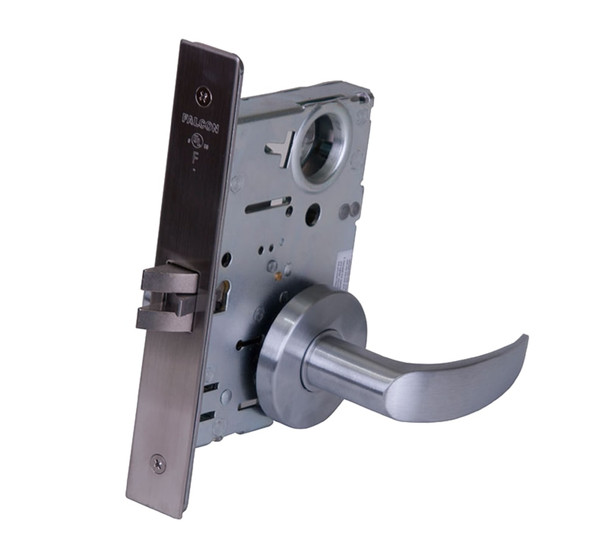

The Falcon MA531B AG 630 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This durable lock combines security with reliability, featuring an interchangeable core (SFIC compatible) for fast re-keying and field reversibility to simplify installation and maintenance across multiple door types.
Designed for standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset, the MA531B meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. An authorized E.D. Locks dealer can verify your specific backset and handing requirements, arrange custom keying, and provide expert support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder); A keyway (I/C cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw with two 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified functions: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
