Description

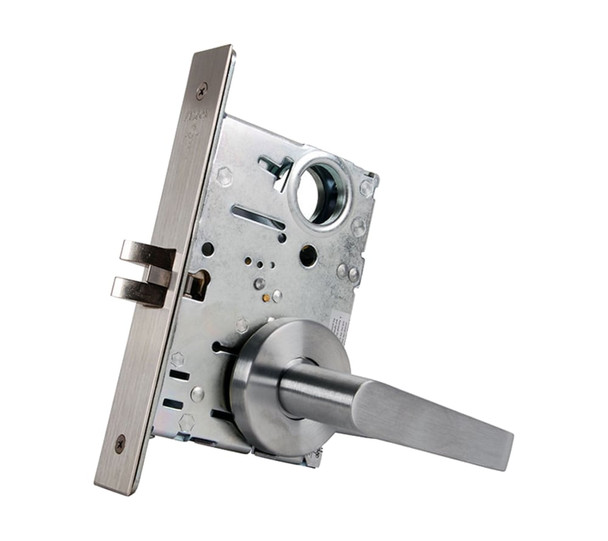

The Falcon MA531B DG 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying and compatibility with SFIC products, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver reliable security and durability without compromise.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A label standards. Ships with two nickel silver keys and includes optional electrified functions in 12 or 24 VDC. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and keying assistance.
Specifications
- Brand: Falcon
- Model: MA531B DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard; left hand and reversible options
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- Includes: Two nickel silver keys
