Description

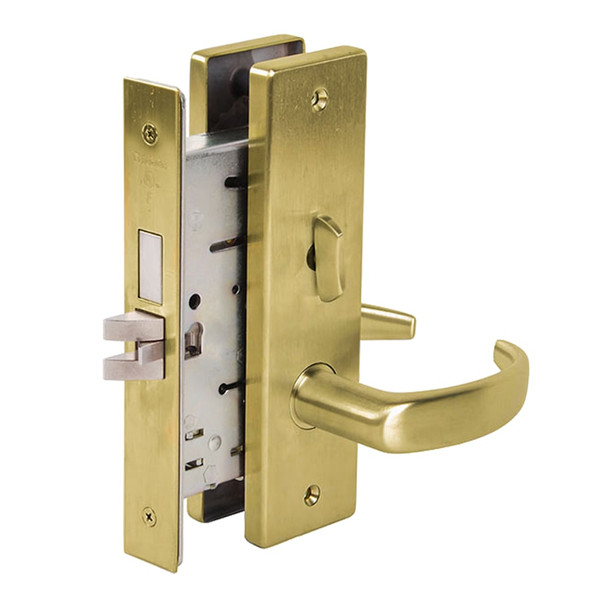

The Falcon MA541B mortise lock delivers commercial-grade security and reliability for offices, hospitals, educational facilities, and other high-traffic environments. Built with a cold-formed steel case, stainless steel latch and deadbolt with saw-resistant rollers, and heavy-duty through-bolted trim, this lock withstands constant use without fail and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire rating standards.
Compatible with standard and interchangeable SFIC cores for quick re-keying, the MA541B fits door thicknesses of 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset and is reversible in the field for right or left-hand installation. As an authorized Falcon dealer, E.D. Locks provides expert support to ensure proper specification and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, or project guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541B QN 606
- Lock Type: Mortise, ANSI/BHMA Series 1000
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch only
- Case: Cold-formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with two 13/16 inch saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Standard Keyway: G (standard cylinder), A (interchangeable core)
- Hubs: Hardened steel
- Handing: Right-hand standard, left-hand optional, reversible in field
- Faceplate: 1-1/4 x 8 inches, brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Keying: Furnished with two nickel silver keys
- Electrified: Available in 12 or 24 VDC
- Fire Rating: UL 3-hour A label
