Description

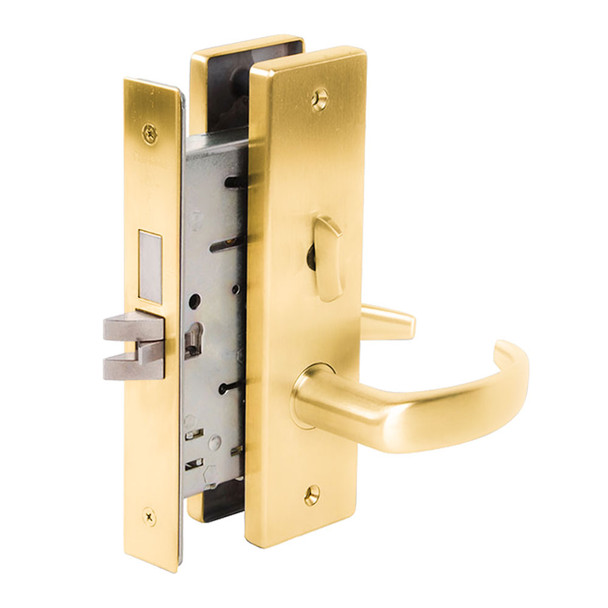

The Falcon MA541B mortise lock is a high-performance commercial security solution designed for offices, hospitals, schools, and other institutions requiring dependable daily-use hardware. This Series 1000 lock features a mechanical anti-friction latch, saw-resistant dead bolt rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA541B accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for left or right-hand applications. As an authorized Falcon dealer, E.D. Locks provides expert assistance with specification selection, keying options, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for guidance on your project requirements.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541B QN 605
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Keys Furnished: Two nickel silver keys
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
