Description

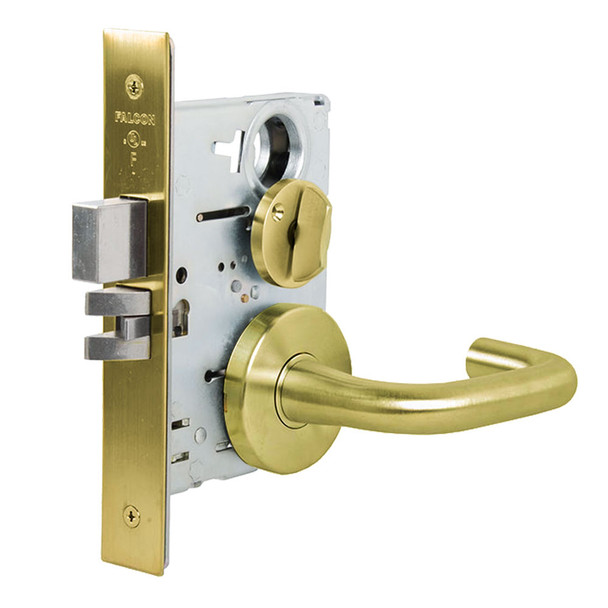

The Falcon MA541B SG 606 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This interchangeable core lock combines affordability with dependable security, engineered to withstand constant daily use while providing easy field reversibility and quick re-keying without removing the door.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and SFIC products from other manufacturers, this lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for installation guidance, keying options, and finish selection to ensure the perfect fit for your project.
Specifications
- Brand: Falcon
- Model: MA541B SG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys: Two nickel silver keys furnished standard
